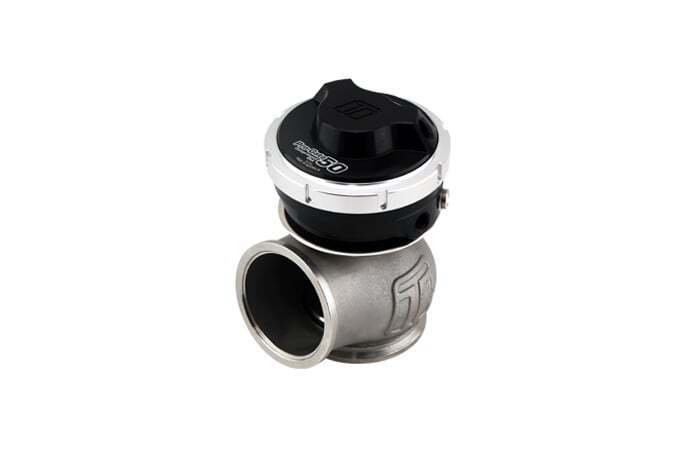

The GenV ProGate WG50 Compressed Gas external wastegate is a cost-effective, high performing 50mm external wastegate designed for control strategies that actively bias the top chamber with high pressure for large boost bandwidth operation, such as CO2 drag racing or compressed air WRC applications.

The Compressed Gas range feature an inverted diaphragm to maximize diaphragm life from high-pressure CO2 or compressed air systems.

The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimised and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8? NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue
Wastegate Position Sensor Version & Upgrade

Features
Class-Leading, Thermal Performance
Class-Leading, CFD & Bench Validated Flow Performance
Class-Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
User Adjustable Actuator Position
Modular Design for Actuator Interchangeability
SKU TS-0554-1202
Barcode # 9329677018943
Brand Turbosmart
